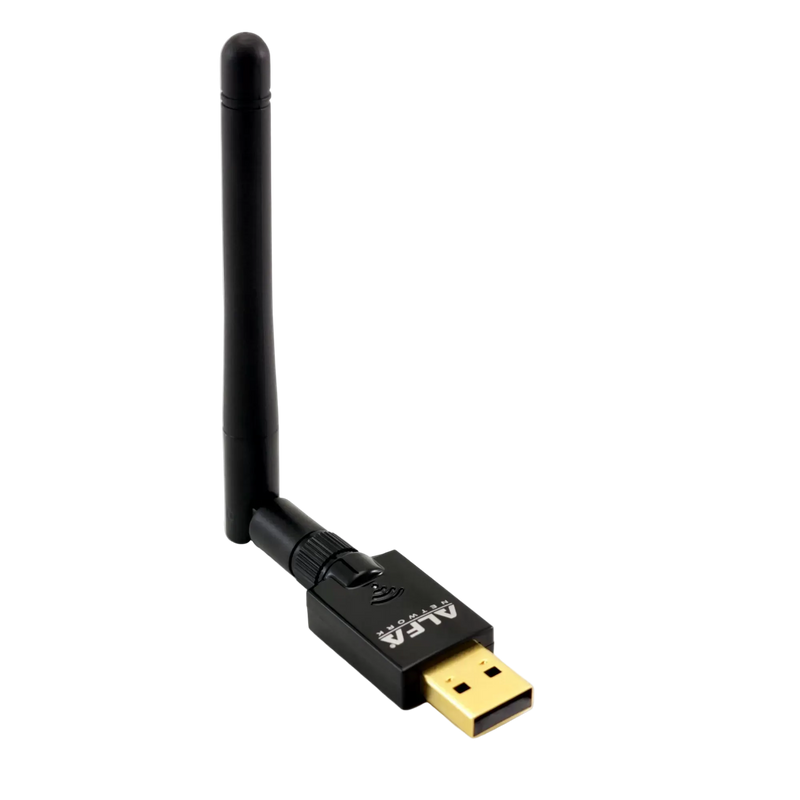

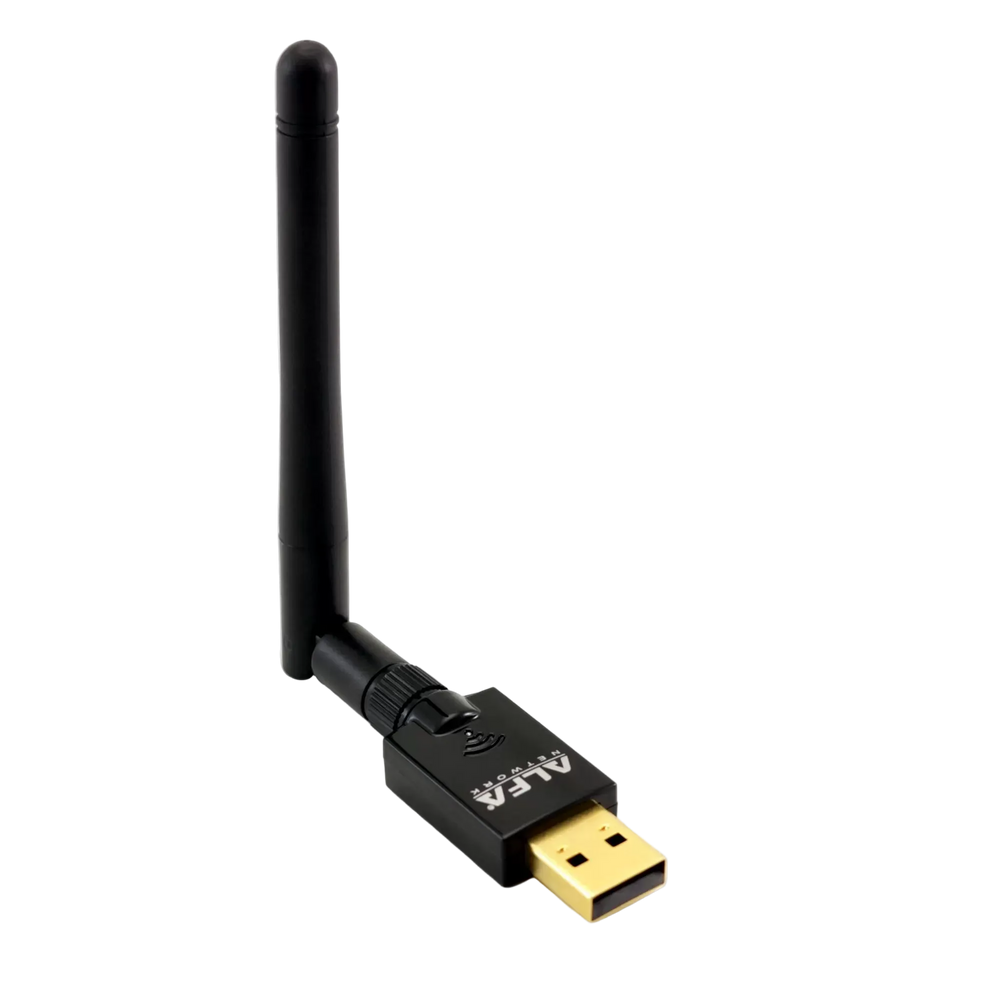

The offered card is based on the Realtek RTL8811AU chipset - supports 2.4GHz and 5GHz frequencies - The aforementioned chipset offers high sensitivity (18dBi) so that even weak or distant signals will be received with appropriate speed and stability. The card has an RP-SMA antenna input, which allows you to connect a directional or omnidirectional antenna.
The card supports monitor mode.
The AWUS036ACS is capable of receiving and transmitting in both the 2.4 GHz and 5 GHz bands. With 802.11ac routers, it can achieve throughputs of up to 433 Mbps. This card is backward compatible with 802.11g and 802.11n networks. An 802.11ac router is required for maximum throughput.
This product is compatible with the Alfa APA-M25 dual-band panel antenna. Your 802.11ac router will perform optimally when all your computers are AC, so this is a very inexpensive way to upgrade all your devices.
Specification
Chipset
Realtek RTL8811AU
WiFi Standards
IEEE 802.11ac/a/b/g/n
WiFi Frequency
Dual Band 2.4GHz or 5GHz
Antenna Connector
RP-SMA female x 1
Antenna Type
2.4G/5GHz Dual-Band 2dBi dipole antenna
Wireless Performance
802.11a: up to 54Mbps 802.11b: up to 11Mbps 802.11g: up to 54Mbps 802.11n: up to 150Mbps 802.11ac: up to 433Mbps
Wireless Security
WEP, WPA, WPA2, WPA Mixed, WPS
Interface
USB 2.0, type A, male connector
OS Requirement
Windows XP, Vista, 7, 8/8.1 and Windows 10 32/64bit, Linux
Note, the method below on the latest Kali Linux no longer works (they should fix it in the future), to currently install the drivers in the Kali Linux 2024 version you need to download them from Github as described on our blog: https://sapsan-sklep.pl/blogs/artykuly/alfa-awus-kali-linux-2024-fix
To install the drivers on Linux, just enter the command: apt-get install -y realtek-rtl88xxau-dkms
Our own video presenting the card and an example attack:
