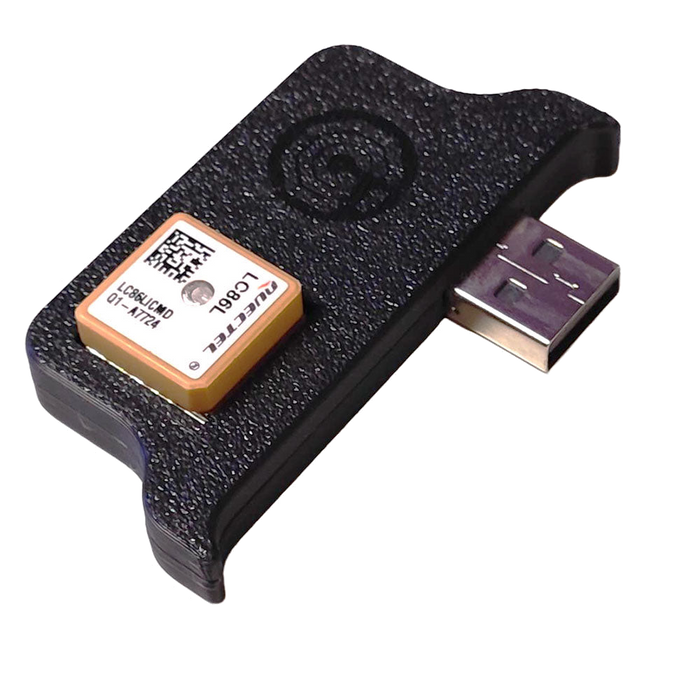

Glytch GPS Mod adds precise GNSS positioning data to the WiFi Pineapple Pager. At the heart of the module is a multi-constellation Quectel LC86 chipset, which enables geotagging of reconnaissance results, mobile wardriving and the creation of WiGLE-compatible logs.
GNSS for reconnaissance and wardriving
- Quectel LC86 multi-constellation GNSS chipset,
- positioning data for GPS features on WiFi Pineapple Pager,
- support for recording wardriving sessions in WiGLE format,
- compact 3D-printed enclosure and hand assembly.
Configuration on WiFi Pineapple Pager
- Update the Pager to the latest firmware and connect the module to the USB port.
- Open Settings → GPS.
- Set the baud rate according to the module marking: LC86L - 9600 baud, LC86G - 115200 baud.
- Select the serial device (usually
1.1_1-1.1:1.0) and restart the GPSd service.
The first position fix may take several minutes. You will get the best results with an unobstructed view of the sky. Official Glytch GPS Mod guide.
Specifications and package contents
| Chipset |
Quectel LC86 |
| System |
multi-constellation GNSS |
| Connection to Pager |
USB |
| Weight |
23 g |
| Construction |
3D-printed enclosure, hand-assembled |
The package contains one Glytch GPS Mod. WiFi Pineapple Pager is not included. Minor visual variations are a natural characteristic of a hand-assembled product.
