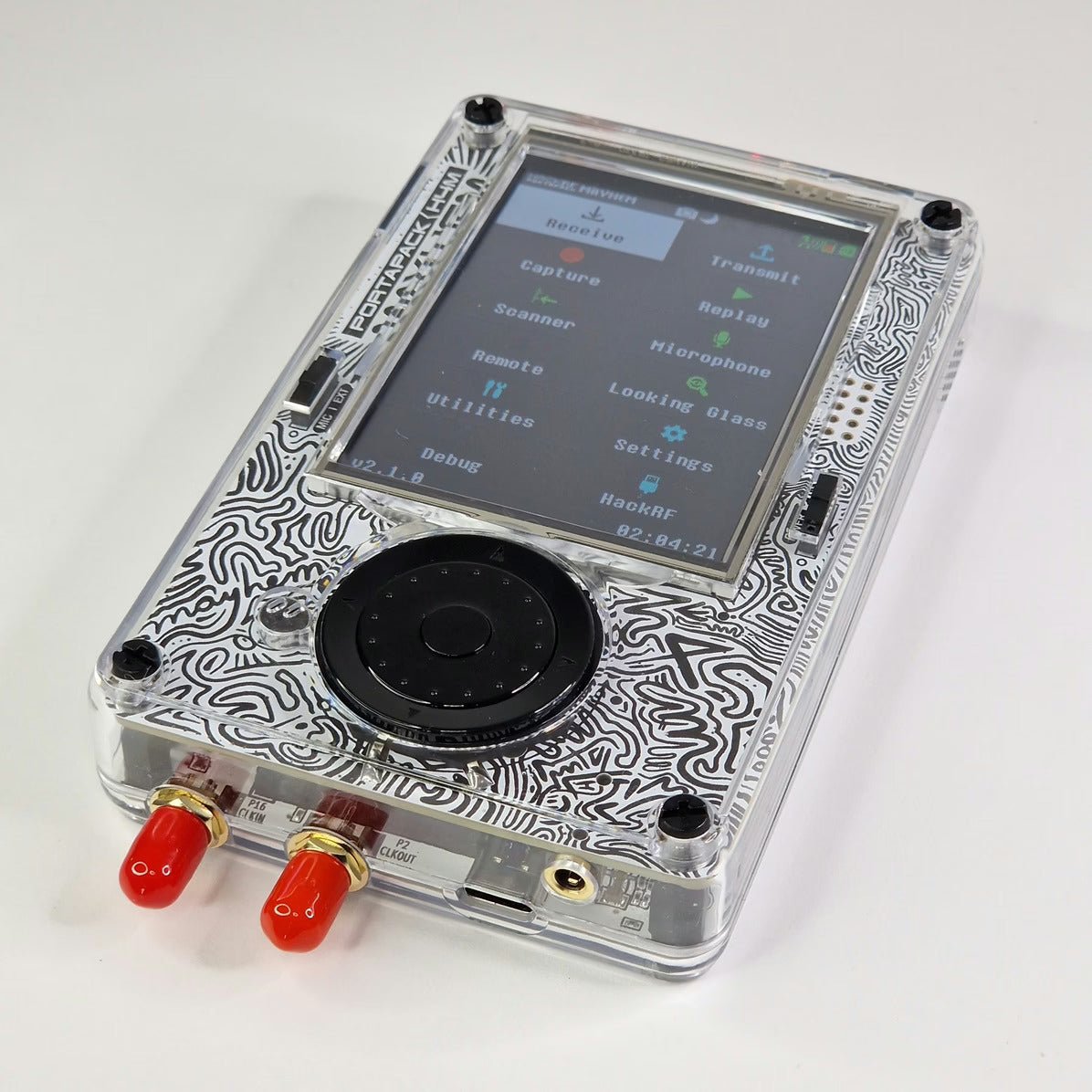

Advanced Portable SDR System with Extended Functionality
The latest generation PortaPack H4M introduces a number of innovative improvements while retaining all the key features of its predecessor:
New H4M Features:
- Single power switch eliminates the problem of battery drain in standby mode
- Advanced battery management system with precise display of charge level, voltage and current consumption
- 3.2" matte display for excellent visibility even in full sunlight
- Innovative iPod-style 360° rotary button for easy navigation
- GPIO port for connecting your own extensions and add-ons
- Much faster battery charging
- Built-in microphone with switch between internal and headphone microphone
- Automatic sound switching between speaker and headphones
Basic Technical Parameters:
- Frequency range: 1MHz - 6GHz
- Interface: USB Type-C
- Built-in battery with advanced power management system

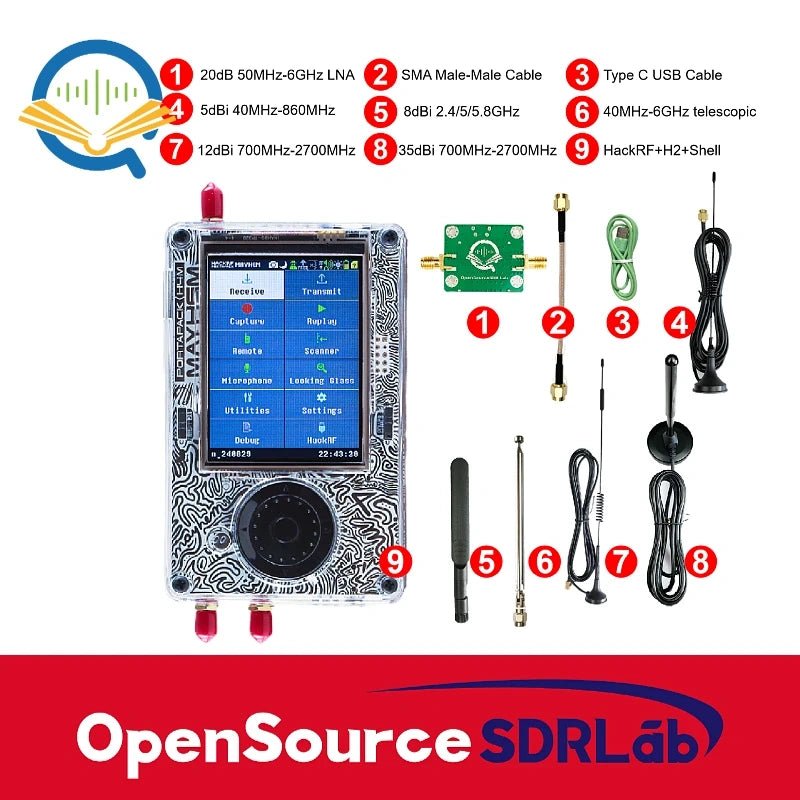

Kit Contents:
- HackRF One with PortaPack H4M with Mayhem firmware

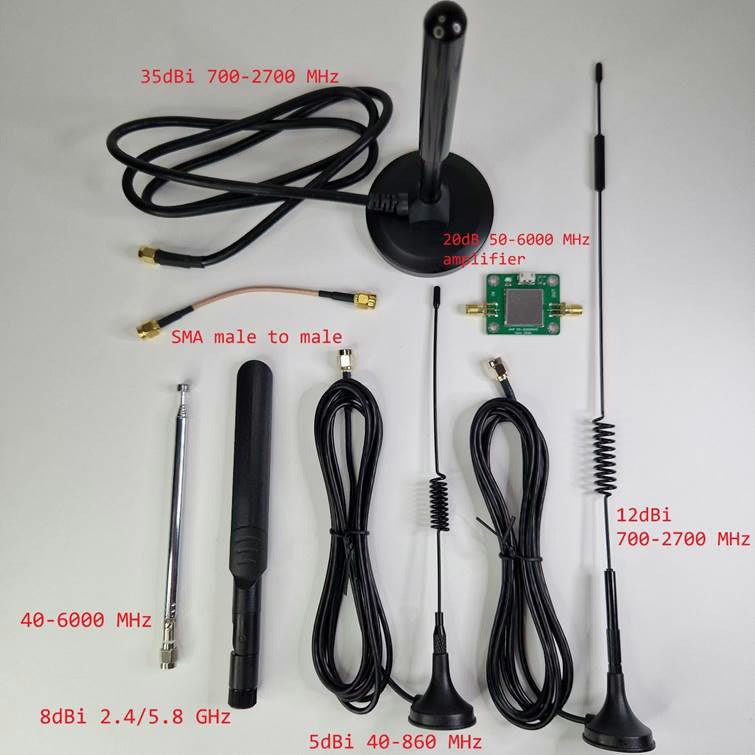

- Set of 5 antennas:
- Portable 2.4/5.8 GHz
- Magnetic GSM/3G/4G
- Portable 40MHz-6GHz
- Magnetic 40-860 MHz
- Magnetic 700-2700 MHz
- USB Type-C Cable
- Power Amplifier 50MHz - 6GHz 20db
Mayhem software offers advanced features:
- RF signal analysis and emulation
- Support for various protocols (FM, CTCSS, POCSAG, SSTV)
- Advanced SDR Features
- ADS-B monitoring with map view (the map must be loaded onto an SD card, which is not included)
- RF signal generator
- Frequency manager with SD card storage
Compatibility:
- Systems: Windows, macOS, Linux, Android
- Software: GNU Radio, SDR#, SDR Radio, Universal Radio Hacker etc.
- Supports all major SDR packages
Applications:
- Analysis and study of radio signals
- Wireless Communication Education
- Experimental SDR projects
- Radio system security testing
- Communication protocol research
Note: The user is obliged to comply with local regulations regarding the use of radio devices and takes full responsibility for the manner of using the device.
