RTL-SDR Broadcast FM Band-Stop Filter
5.0- FM 88-108 MHz
- >50 dB
- SMA
140,00 zł
165,00 zł
Lowest price in 30 days before discount: 165,00 zł
Only 2 leftShips from our warehouse in Poland
Notify me when it's back
We'll send one email when RTL-SDR Broadcast FM Band-Stop Filter is back in stock.
- Free shippingOrders over $200 · Poland: usually 1-2 business days
- VAT invoice with every order
- 14 days to returnReturn policy
- Technical help after purchase
Often bought together with RTL-SDR Broadcast FM
Description
RTL-SDR Broadcast FM Band-Stop Filter blocks the FM band from 88 to 108 MHz with more than 50 dB of attenuation.
Insertion loss is below 0.5 dB in the 0 - 73 MHz and 127 MHz - 1 GHz ranges and below 1.5 dB in the 1 - 3 GHz range.
An FM block filter helps if there are strong 88 - 108 MHz FM transmitters nearby that overload the front end of your SDR receiver.
Also known as an "FM Trap".
Note: for use with a receiver (RX) only.
The set includes:

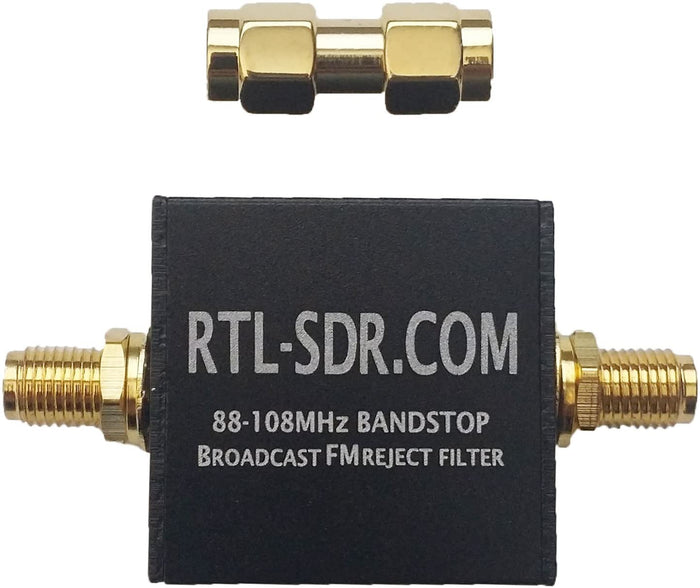

- 1 x RTL-SDR Blog Broadcast FM Band-Stop Filter
- 1 x SMA male / SMA male adapter
