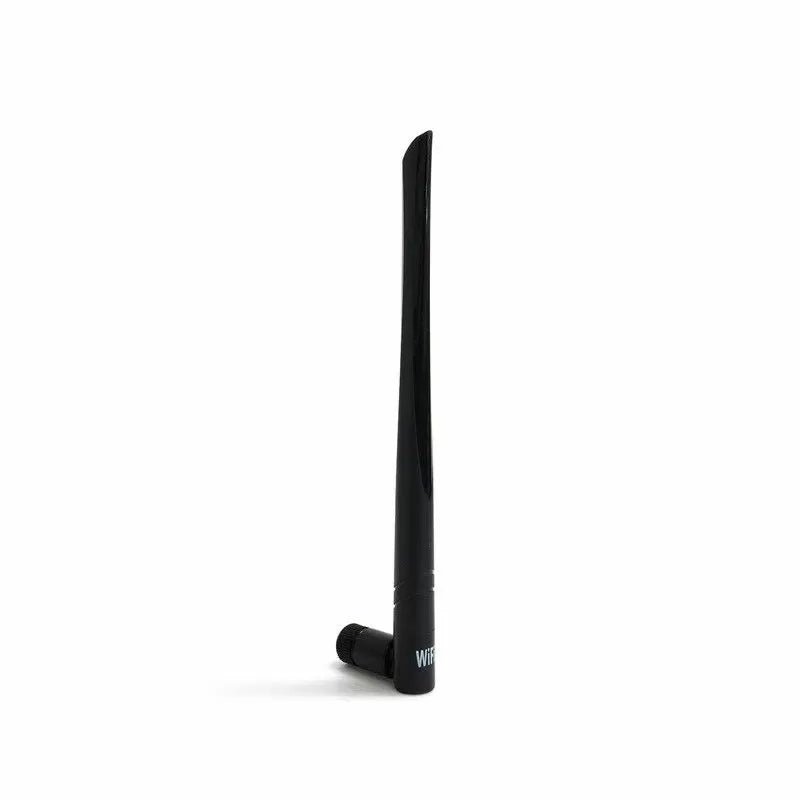

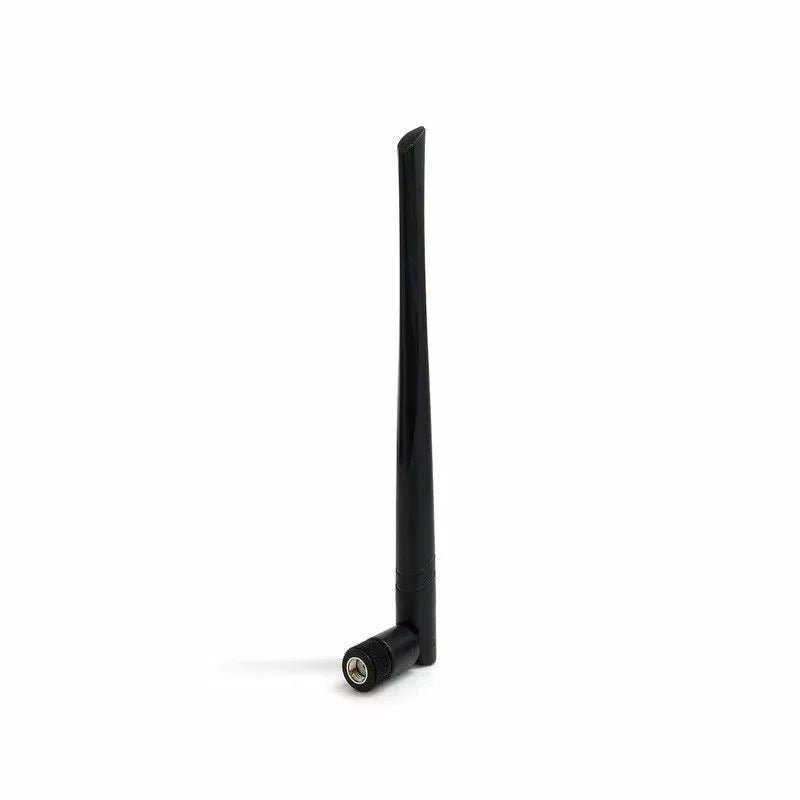

Alfa WiFi 6E Tri-Band Dipole Antenna ARS-NT5B7
- RP-SMA
- 2.4/5/6 GHz
- 4/5/7 dBi
24,00 zł
Lowest price in 30 days before discount:
Temporarily out of stockShips from our warehouse in Poland
Notify me when it's back
We'll send one email when Alfa WiFi 6E Tri-Band Dipole Antenna ARS-NT5B7 is back in stock.
In stock now in this category
See the whole category- Free shippingOrders over $200 · Poland: usually 1-2 business days
- VAT invoice with every order
- 14 days to returnReturn policy
- Technical help after purchase
Description
Efficient tri-band antenna
The ALFA WiFi 6E Antenna (ARS-NT5B7) is designed for exceptional performance across a wide frequency range, making it an ideal solution for WiFi 6E systems. It supports 2.4 GHz (2400-2500 MHz), 5 GHz (5150-5925 MHz), and 6 GHz (6025-7125 MHz) bands, providing a stable connection across all key bands. It features high antenna gain: 4 dBi in the 2.4 GHz band, 5 dBi in the 5 GHz band, and 7 dBi in the 6 GHz band, which translates into a strong signal and increased network performance.
Versatile use
The omnidirectional radiation pattern makes the antenna ideal for a variety of WiFi 6E devices. Vertical polarization and 50Ω impedance ensure efficient signal transmission, and VSWR ≤ 2.0 minimizes signal loss and reflection.
Durable construction

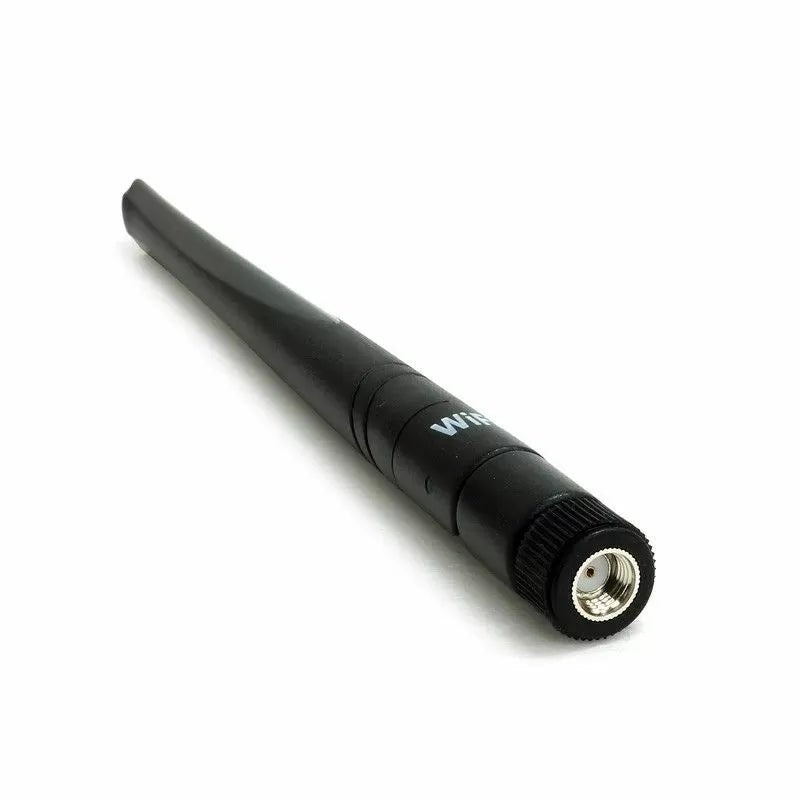

The ARS-NT5B7 model operates reliably in temperatures from -40°C to 85°C, which allows it to be used in various indoor conditions. The solid construction guarantees long-term operation without losing parameters. Equipped with an RP-SMA (male) connector, it is compatible with most modern routers and network devices.
The antenna will work well in home networks, office applications or industrial IoT systems. It effectively increases the range and signal strength of the WiFi 6E network in all three frequency bands, ensuring a stable and efficient connection even in demanding conditions.
Specification:
| Category | Parameter | Specification |
|---|---|---|
| Wireless network | Standard | Wifi 6E |
| Antenna | Construction type | All around |
| Frequency range and gain | 2.400 - 2.500 (GHz) 4 (dBi) 5.150 - 5.925 (GHz) 5 (dBi) 6.025 - 7.125 (GHz) 7 (dBi) |
|
| Polarization | Vertical | |
| VSWR | < 2 | |
| Impedance | 50 Ohm | |
| Connectors | RF connector | (1) RP-SMA male |
| Physical parameters | Dimensions | 13x13x196mm |
| Libra | 0.02 kg | |
| Operating temperature | -40°C to 85°C | |
| Working environment | Internal | |
| Installation method | Screw |
